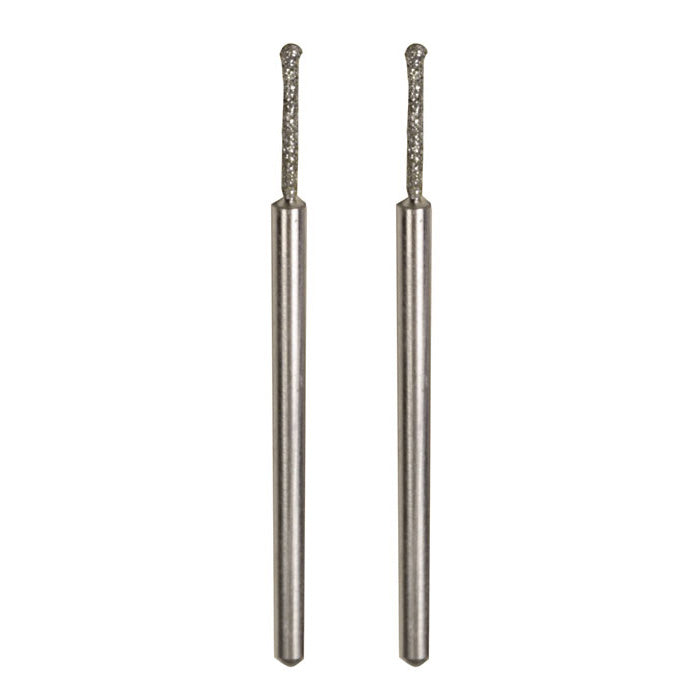

Proxxon Diamond Drilling and Grinding Bit 1.0mm
by Proxxon
SKU 28230
Original price
$9.00
-
Original price
$9.00
Original price
$9.00
$9.00
$9.00
-
$9.00
Current price
$9.00
The Proxxon Diamond Drilling and Grinding Bit (1.0mm) is a precision micro-bit for drilling and grinding in the hardest materials – glass, ceramics, porcelain, and hard stone – where standard HSS or carbide bits would chip, crack, or fail. The diamond coating delivers the hardness needed to penetrate brittle materials cleanly, making it the go-to bit for fine detail work in tile repair, mosaic work, jewelry, and lapidary applications.
At 1.0mm diameter, this is one of the finest bits in the Proxxon MICROMOT range – ideal for starting precision holes in glass or ceramic without cracking the surrounding material.
Key Features
- Diamond-coated tip – Penetrates glass, ceramics, porcelain, and hard stone
- 1.0mm diameter – Ultra-fine precision for detail drilling and grinding
- 2.35mm shank – Fits all Proxxon MICROMOT collet tools
- Coolant required – Use with water or cutting fluid to prevent overheating and extend bit life
- Best at 2,000 RPM – Use on a drill press for controlled speed and consistent results
Specifications
- Diameter: 1.0mm
- Shank: 2.35mm (3/32")
- Coating: Diamond
- Recommended speed: 2,000 RPM
- Coolant: Required
Best Suited For
- Glass drilling and engraving
- Ceramic and porcelain tile detail work
- Hard stone and semi-precious stone
- Mosaic and lapidary applications
- Jewelry and craft precision drilling
Works Well With
- Proxxon IBS/A Cordless Drill/Grinder – Cordless MICROMOT rotary tool for flexible job site use
- Proxxon Diamond Drilling & Grinding Bit 1.5mm – Step up for slightly larger holes in the same materials
- Proxxon Diamond Drilling & Grinding Bit 3.2mm Ball – Ball-shaped bit for concave grinding and milling
- Proxxon Diamond Twist Drills 0.8mm + 1.2mm – Twist drill format for cleaner entry holes in glass and ceramic
