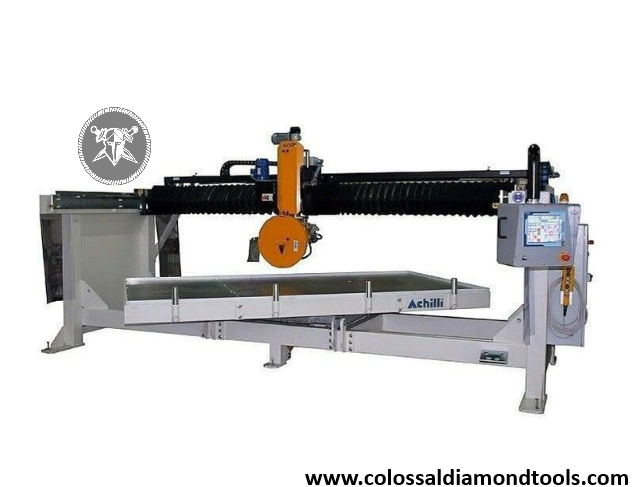

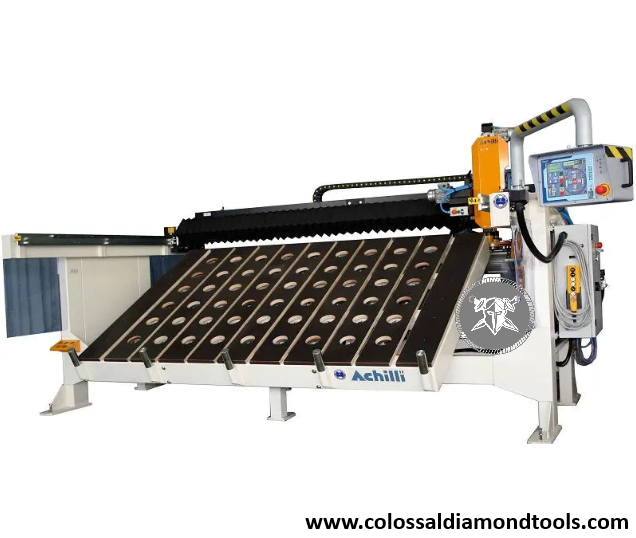

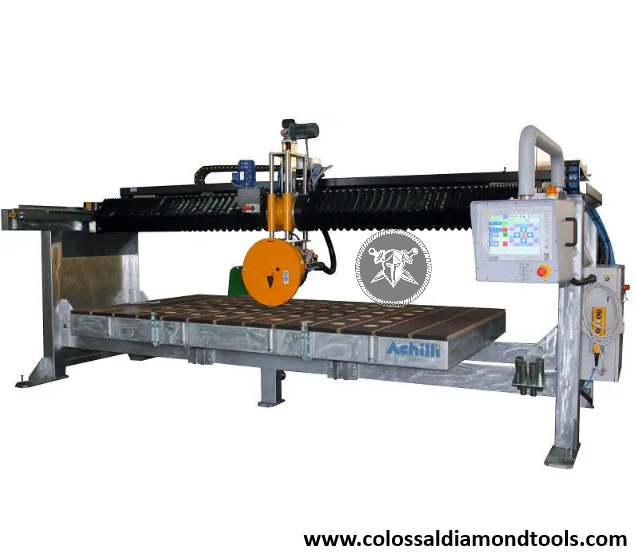

Achilli MBS TS Bridge Saw Mobile Bridge CNC Machine Z0MBSTS
CNC BRIDGE SAW FOR INTERPOLATED ANGLE CUTTING IN ALL DIRECTIONS

MBS TS is our best-selling bridge saw; the perfect combination of simplicity, flexibility and durability. The installation is easy and does not require foundation. The machine is equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The rotation of the head allows to perform interpolated angle cutting in all directions.

ADVANTAGES
MBS TS is our historical monoblock bridge saw with CNC axis control unit for cuts programming:
Customizable according to customer requirements;

  • Monoblock structure for easy installation;
  • The perfect cutting precision is guaranteed by the special design of the beam;
  • Manual or automatic head rotation to perform interpolated angle cutting in all direction

TECHNICAL DETAILS

  • X-axis travel: 3500mm (11’5”)
  • Y-axis travel: 1930mm (76”)
  • Z-axis travel: 350 mm (13”)

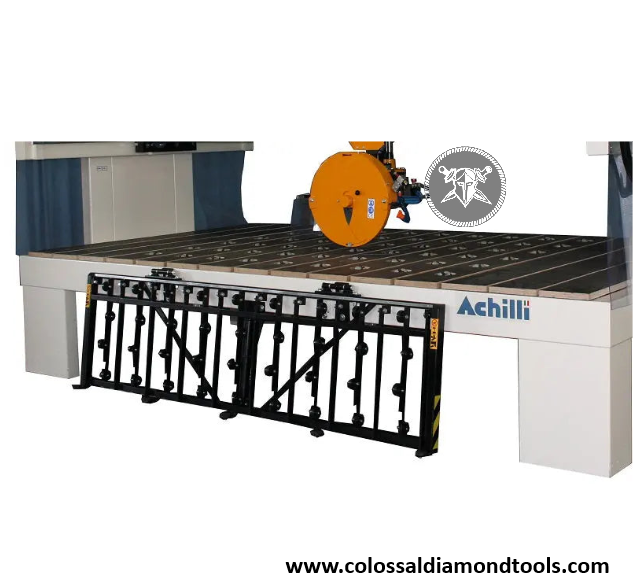

  • Worktable dimensions: 4800x2200mm (15’7”x7’2”)
  • Max. diamond blade diameter: 350-525mm (14"-20") - 300-400mm (11"-15")
  • Blade bore size: 50 mm (2”)
  • Manual head tilt: 90° - 45°
  • Head rotation: 0°- 90°- 180°- 270° / 0°- 360°
  • Main motor power: 7.5kW = 10HP /11kW = 15HP
  • Main motor rotation speed: 1400 rpm 50Hz – 1700 rpm 60Hz
  • Main motor variable speed: (optional) 800 - 3000 rpm
  • Standard voltage/frequency: 400V-50/60Hz /230V-60Hz 3ph.
  • Shipping cost to be determined subject to actual quotes
